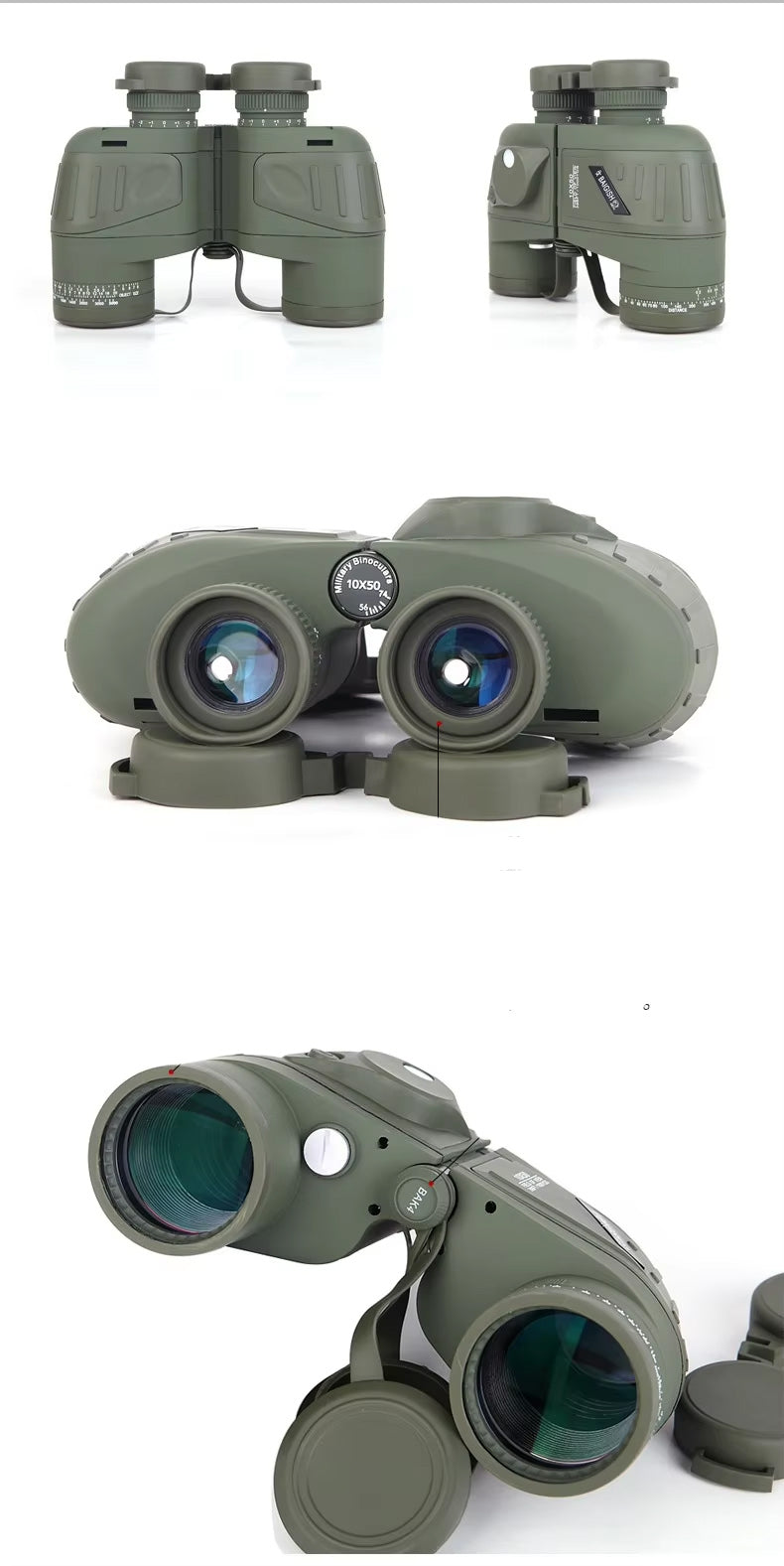

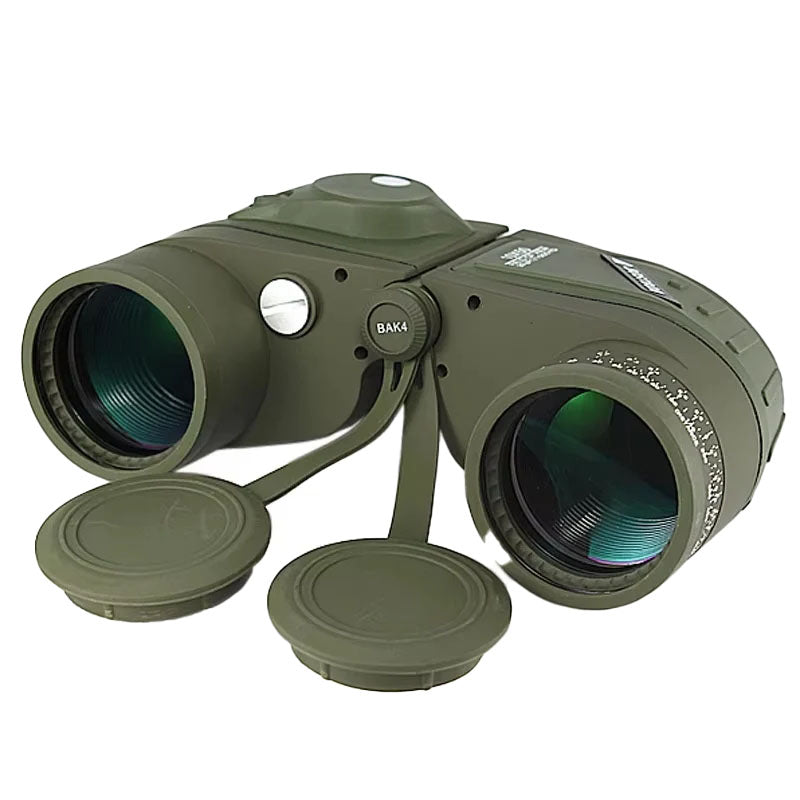

RECON GS2 BAK400 HD 10X50 With Compass & Range Finder Binocular.
Genuine article not a copy and a one year Australian warranty.
Built-in rangefinder & compass scale are illuminated by the light on/off switch!
Full Australian Warranty.
Powerful 10 x 50 Binocular with Range finder and compass.
-
HIGH-POWERED RECON GS2 BAK400 HD 10X50 With Compass & Range Finder Binoculars has 7x magnification, 50mm objective lens and wide field of view, letting you look farther and see wider. Coating with FMC Broadband coating and premium a BAK400 prism. Rugged rubber armor covering provides a non-slip and secure grip
Binoculars with Rangefinder Compass: Incorporating an illuminated compass built-in for direction location, together with an internal rangefinder to calculate the distance and size of the object on the left eyepiece directly.
illuminated by pressing the light button, provides the maximum brightness of the image/s even in low light conditions, such as at dusk and dawn.
BRIGHT VIEWING AND BaK-400 PRISMS: This binocular will be a favorite among those who view in low light conditions near dawn and dusk. Nitrogen filled IPX7 100% waterproof fog-free performance.
BAK-400 prisms with fully multi-coated reduces the reflected light, color errors, distortions and improves light transmittance.
DURABLE AND WATER-RESISTANT: A rugged, armored body provides protection and a secure gripping surface, ensuring product durability for years to come. Its water-resistant exterior means you won’t have to worry about getting caught in unexpected rainy weather.
The Binoculars come with Bag and Strap: It is easy to carry and store. Durable rubber armored coating is comfortable to hold and rugged enough to stand up to any conditions. Ideal For Travel, Concerts Outdoor Activities, Bird Watching, Climbing, Archery, Hiking, Camping, , Boating, Target Shooting, Water Sports. You name it !
Important Delivery Notice
This item is supplied directly from our distribution hub and typically arrives within 8–14 business days.
Tracking details will be emailed to you once your order has been dispatched.
If you have any questions regarding your order, please contact us:
Email: despatch@kitbag.com.au
Phone: (08) 9250 8448
Please note: Due to the fulfilment method for this product, Express Shipping and Click & Collect are unavailable.
Operating instructions,
The BAK 400 HD uses a mechanical internal glass reticle scale and an analog/illuminated compass rather than a digital laser.
How to Use a Compass
A compass indicates the bearing angle of the observed target relative to your position.
Compass readings range from 0° (360°) to 360°, with the following meanings:
360°: Due North
90°: Due East
180°: Due South
270°: Due West
For example, a reading of 100° means 10 degrees south of due East.
How the Internal Compass Works
Direction in Degrees: Look through the right eyepiece (or designated compass window) to see a degree scale from 0 to 360 relative to magnetic north.
Reading Bearings: North is 0°/360°, East is 90°, South is 180°, and West is 270°. Aligning the tick mark with your target gives your exact directional bearing.
Night Illumination: Turn on the built-in light switch powered by small side-mounted batteries to illuminate the compass scale during low-light conditions at dusk or dawn.
How the Internal Rangefinder Works
The Reticle Scale: You will see a vertical scale with hash marks and a horizontal crosshair on the field of view in the left eyepiece. This is a graticule-based optical rangefinder, not an electronic laser.
The Calculation Formula: To find how far away an object is, you must know or estimate its actual height (or width).
To find the distance to an object, you count how many hash marks (mils) it covers on the reticle, then apply the optical rangefinder formula.
The Optical Rangefinder Formula
\(\text{Distance}=\frac{\text{Actual\ Size\ of\ Target}\times 1000}{\text{Reticle\ Size\ (mils)}}\)
Example 1: Calculating Distance to a Person
-
The Scenario: You see a person standing in the distance.
-
Estimated Actual Size: Assume an average adult height of \(1.8 \text{ metres}\).
-
Reticle Size: The person fills exactly \(3\text{ mils}\) (hash marks) from head to toe.
-
The Calculation:
\(\text{Distance}=\frac{1.8\times 1000}{3}\)
\(\text{Distance}=\frac{1800}{3}=600\text{\ metres}\)
-
The Result: The person is exactly \(600 \text{ metres}\) away from you.
Example 2: Calculating Distance to a Coastline Object
-
The Scenario: You are looking out at a standard navigation buoy or small boat.
-
Estimated Actual Size: You know the object is roughly \(4 \text{ metres}\) tall.
-
Reticle Size: The object covers \(8\text{ mils}\) on the vertical scale.
-
The Calculation:
\(\text{Distance}=\frac{4\times 1000}{8}\)
\(\text{Distance}=\frac{4000}{8}=500\text{\ metres}\)
-
The Result: The object is exactly \(500 \text{ metres}\) away.
Pro Tip for Field Use

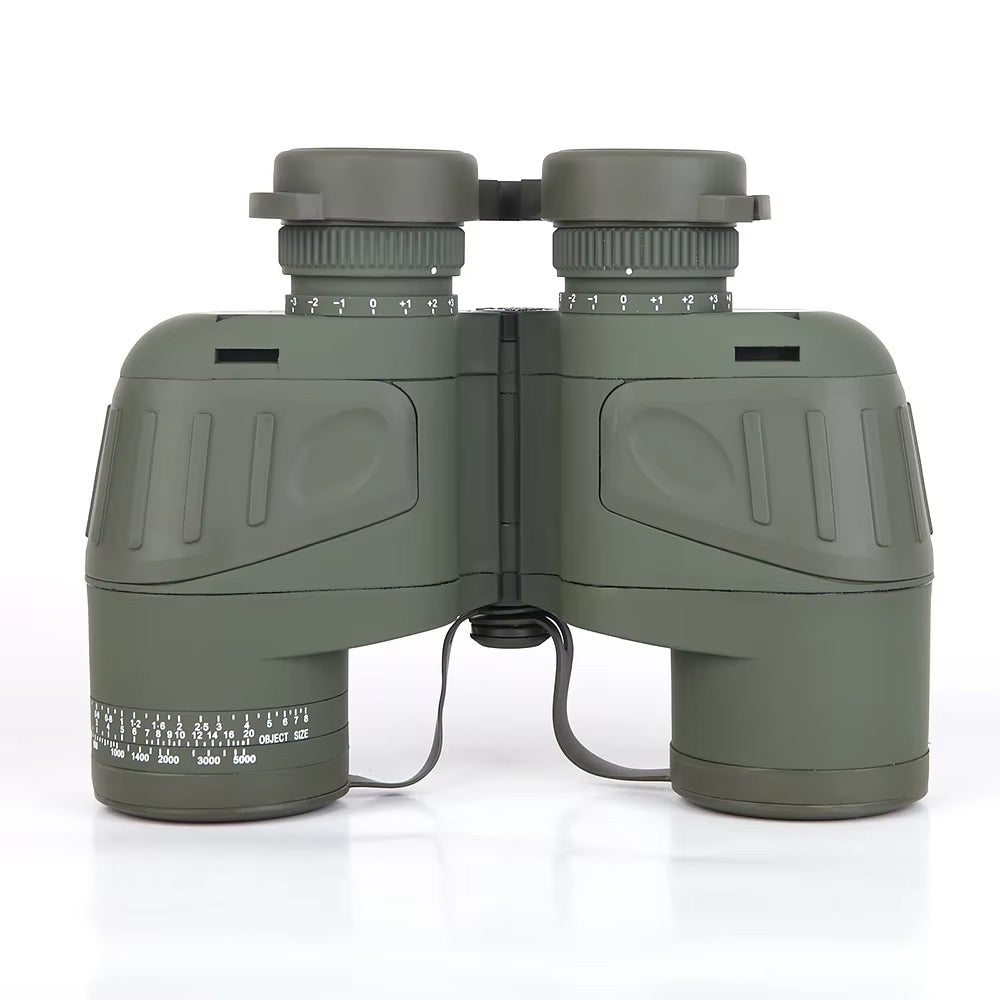

Your binoculars has the rotational
calculator ring on the outer lens barrel, so you do not need to do the division in your head. You simply rotate the dial to align your known
target size with the
mils counted, and the indicator arrow will instantly point to your final distance.
In simple terms.
llustrated Instructions (Using a Tree as an Example)When you know the actual height of a distant object (a tree is used here as an example, with an actual height of 4 meters), follow these steps to measure the distance:Aim the device at the target object, then turn the focusing handwheel to focus on the object. (At this point, both the target object and the measuring reticle should be clearly visible simultaneously.)Align the horizontal baseline of the measuring reticle with the bottom edge of the object, then read the reticule height value of the object. (As shown in the figure, the measured reticule height value of the object is 3.)Rotate the measuring counting ring to align the arrow mark with the reticule scale mark "3". Check the distance scale value corresponding to the object size mark "4".If the unit for mark 4 is meters, the corresponding reading of 140 is also in meters, meaning your distance to the object is 140 meters.
